200C Tinned Copper Single Core Fluoroplastic Wire High Temperature

  • 1
  • 2

Brand Name : SANCO

Model Number : AF-200, AFK-250, AFR-250

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulated : FEP, ETFE, PFA, PTFE

Working temperature : -65°C ~+200°C

Features : Heat resistant

Available Color : Purple, Green, Gray, Blue, White, Yellow, Red, Black

Core Number : 1 Core

Gauge : 20AWG, 22AWG, 24AWG, 26AWG...

Conductor Material : Tinned Plated Copper / Silver Plated Copper

Rated voltage : AC 220V, 600V or Below

Customized product : Yes

Contact Now

200C Tinned Copper High Temperature Single Core Fluoroplastic Wire

High temperature is called fluoroplastics,There are PTFE, FEP, PFA, ETFE total four types


High temperature PTFE: PTFE wire can be continuously used at 250 degree, very low coefficient of friction, good wear resistance and excellent chemical stability.


High temperature FEP: FEP wire with excellent chemical stability, excellent non-stick characteristics, the maximum operating temperature is 200℃.


High temperature PFA: PFA wire has higher continuous service temperature of 250℃, stronger toughness, especially suitable for use in high temperature anti-stick and chemical resistance applications


High temperature ETFE: ETFE wire is a copolymer of ethylene and tetrafluoroethylene with excellent chemical resistance and continuous operation at 150℃

Wire Gauge
(AWG)
Section area
(mm2)
Conductor construction
piece/diameter
(mm)
Insulation thickness
(mm)
OD
(mm)
Max. Conductor resistance at 20
(Ω/Km)
Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg 19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

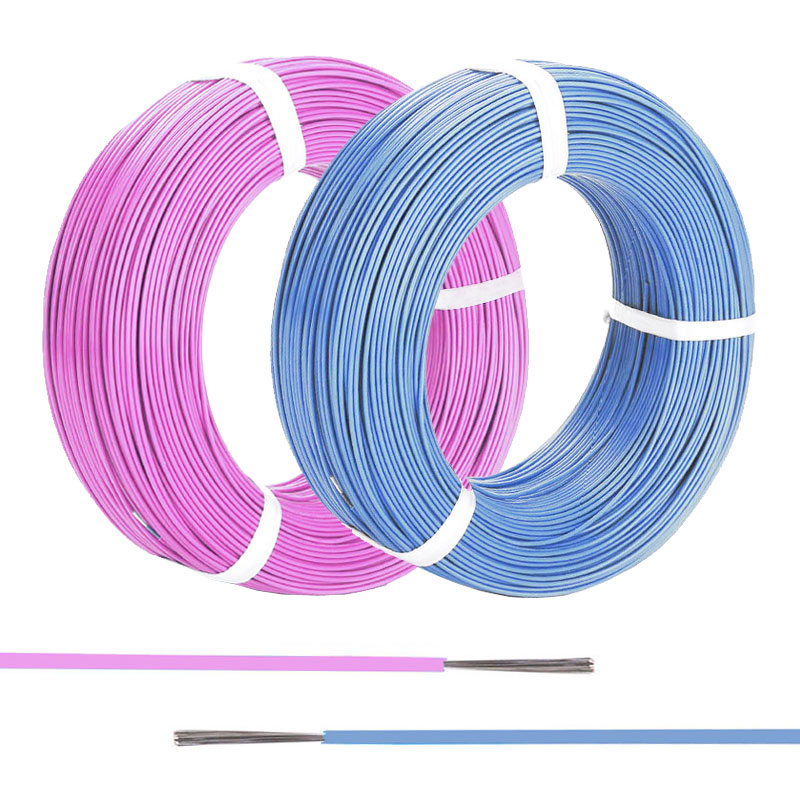

200C Tinned Copper Single Core Fluoroplastic Wire High Temperature

200C Tinned Copper Single Core Fluoroplastic Wire High Temperature
