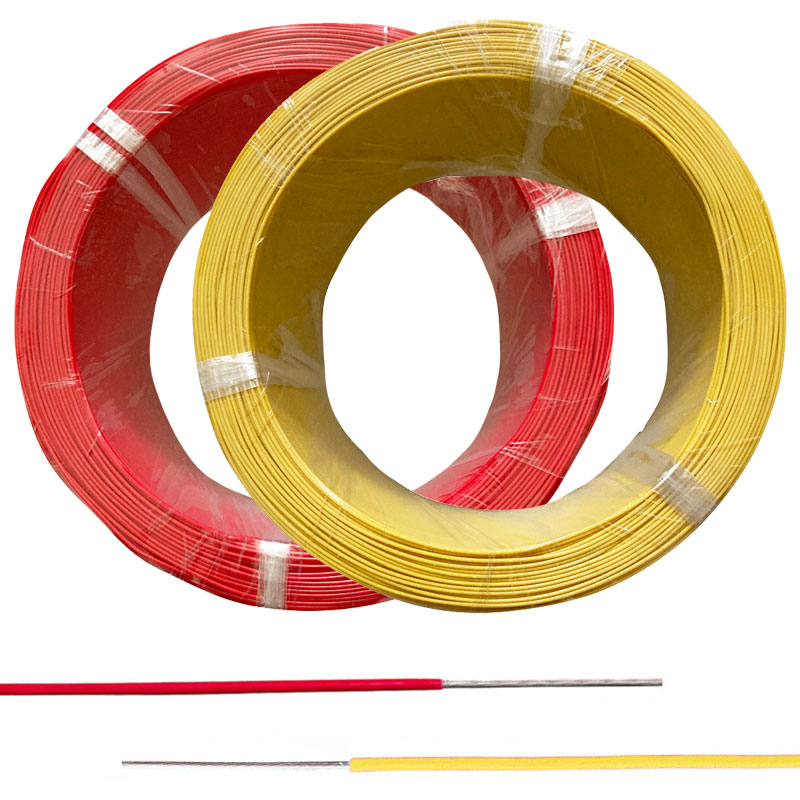

FEP ETFE PFA PTFE Insulation High Temperature Lead Wire 20AWG

Name: FEP ETFE PFA PTFE Insulation High Temperature Lead Wire 20AWG
Brand: SANCO
Price: 1 USD

China FEP ETFE PFA PTFE Insulation High Temperature Lead Wire 20AWG wholesale

Brand Name : SANCO

Model Number : AF-200, AFK-250, AFR-250

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulation : FEP, ETFE, PFA, PTFE Insulation

Working temperature : -65~+250 Degree, -65 ~+200 Degree

Features : Heating Resistance

Available Color : White, Yellow, Violet, Green, Black, Gray, Blue, Red

Core Number : Single Core or Multi Cores

Wire Gauge : 8AWG ~ 28AWG...

Conductor Material : Silver Plated / Tinned Plated Copper

Rated voltage : AC 220V or 600V

Customized product : Yes

Contact Now

20AWG FEP ETFE PFA PTFE Insulation High Temperature Lead Wire

A high temperature wire, is often defined as a wire that can tolerate 125 ℃ or higher temperatures. It can also mean they can manage not just heat but also the cold. High temp wires can also handle ratings as low as 90 ℃. From its conductor to its insulator, high temperature wire constructions are rated 125, 150, 200, 250 ℃.

These wiring kinds usually consist of a conductor (tinned copper, silver plated, nickel-coated copper )and insulation. They may also have an extra jacket that consists of a fibreglass material.

Wire Gauge (AWG)	Section area (mm2)	Conductor construction piece/diameter (mm)	Insulation thickness (mm)	OD (mm)	Max. Conductor resistance at 20℃ (Ω/Km)	Packing length (m)
10awg	5mm2	37x0.43mm	0.33mm	3.67	3.546	305
12awg	3mm2	19x0.49mm	0.33mm	3.11	5.64	305
14awg	2mm2	19x0.37mm	0.33mm	2.51	8.96	305
16awg	1.2mm2	19x0.3mm	0.33mm	2.16	14.6	305
17awg		19x0.26mm	0.33mm	1.96	18.3	305
18awg	1mm2	19x0.23mm	0.33mm	1.81	23.2	305
20awg	0.5mm2	19x0.2mm	0.33mm	1.61	36.7	305
20awg	0.5mm2	1x0.8mm	0.33mm	1.46	35.2	305
22awg	0.3mm2	19x0.16mm	0.33mm	1.46	59.4	610
22awg	0.3mm2	1x0.65mm	0.33mm	1.31	56.4	610
24awg	0.2mm2	7x0.2mm	0.33mm	1.26	94.2	610
24awg	0.2mm2	1x0.5mm	0.33mm	1.16	89.3	610
26awg	0.12mm2	7x0.16mm	0.33mm	1.14	150	610
26awg	0.12mm2	1x0.4mm	0.33mm	1.06	143	610
28awg	0.08mm2	7x0.12mm	0.33mm	1.02	239	610
28awg	0.08mm2	1x0.32mm	0.33mm	0.98	227	610
30awg	0.06mm2	7x0.1mm	0.33mm	0.96	381	610
30awg	0.06mm2	1x0.254mm	0.33mm	0.914	361	610
32awg	0.035mm2	7x0.08mm	0.41mm	1.06	664.8	610
32awg	0.035mm2	1x0.2mm	0.41mm	1.02	588.3	610
