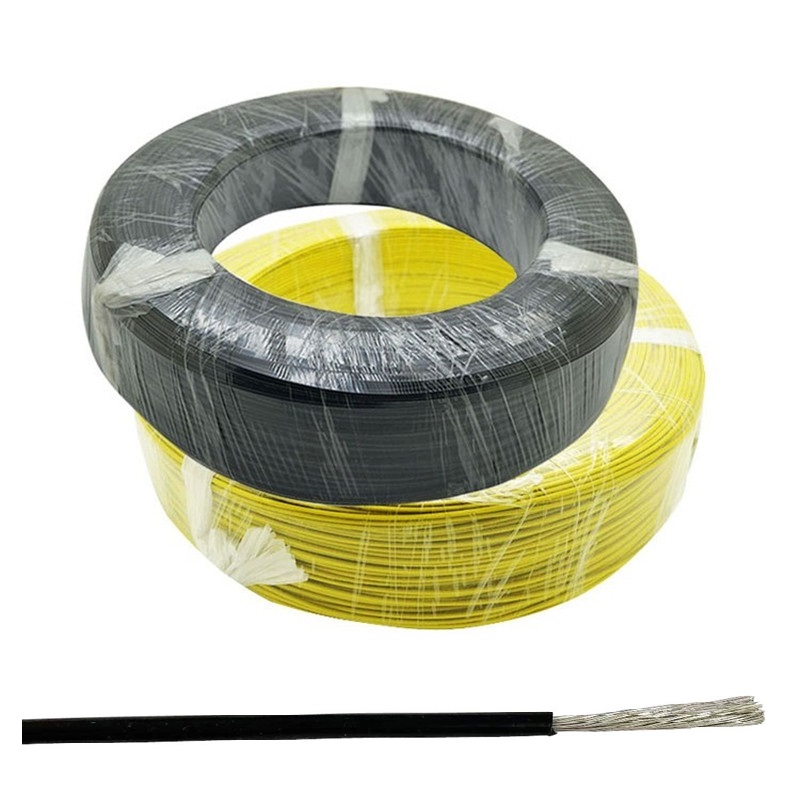

20AWG Transparent Color Tinned Copper Tefzel Aircraft Wire
What is Tefzel aircraft wire?
Tefzel aircraft wire is a type of wire that is commonly used in aircraft electrical systems. its resistance to high temperature, moisture, chemicals, and radiation. Tefzel aircraft wire is highly reliable and is often preferred by aircraft manufacturers for use in their electrical systems due to its excellent performance and durability. It is available in various sizes and colors, and meets the requirements of various aviation standards and regulations.
Properties

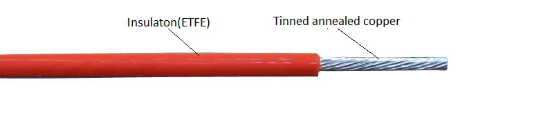

1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30S no breakdown
7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area
(mm2) | Conductor construction
piece/diameter
(mm) | Reference OD
(mm) | Max. Conductor resistance at 20℃
(Ω/Km) | Reference weight
kg/km |
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 |
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
| | | | | | | | |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
